meeting global power standards. Quiet operation and reliable performance make them perfect for backup power. Featuring high-efficiency engines and brushless alternators, they offer low fuel consumption and minimal maintenance. With a monthly output of 60+ units and ample stock, OEM is supported. Over 5,00 units exported to Southeast Asia, Africa, and South America, earning wide trust.

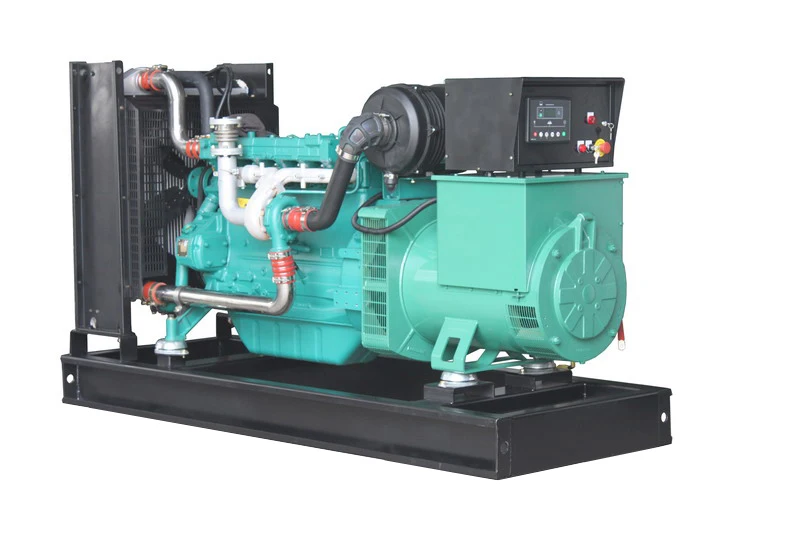

This open type diesel generator set runs a Cummins engine and is built around one practical demand: keeping farms and agricultural operations powered when grid supply is absent or unreliable. It handles irrigation pump loads, grain dryers, cold storage, greenhouse climate systems, and poultry house ventilation — applications where a power cut means direct crop or livestock loss. Units have been shipped to farming regions across East Africa, Southeast Asia, and South America, with repeat orders from distributors serving rural agri-businesses. The open frame design is a deliberate choice for outdoor farm environments. All service points — fuel filter, oil drain, battery, air cleaner — are accessible from ground level without removing any panels. Refueling in the field takes under three minutes. The 8-hour base tank keeps irrigation cycles running without interruption, and an extended day tank option covers longer unattended operation on larger plots. Both 50Hz (380V/400V) and 60Hz (208V/480V) versions are available. Standard units ship from our Yangzhou factory within 7–15 days. ATS automatic transfer switch, trailer mounting for plot-to-plot mobility, and parallel sync for multi-unit farm power stations are all configurable at order stage. CE, ISO9001, and ISO14001 certified. OEM accepted with qualifying quantity.
From 20KVA portable site units to 2200KVA industrial installations, this Cummins open type diesel generator set series covers construction, mining, agricultural irrigation, and factory standby applications. Common power ratings are held in stock at our Yangzhou facility, with 500+ units shipped monthly to buyers across Africa, Southeast Asia, and the Middle East. Every unit leaves the factory with a full-load test record. The open frame structure keeps all service points accessible — filters, belts, injectors, and battery can all be reached without removing a canopy. Both 50Hz and 60Hz versions are in production. CE, ISO9001, and ISO14001 certified. ATS automatic transfer switch, parallel synchronization, trailer mounting, and extended day tanks are all available at order stage. OEM branding and custom voltage / frequency configurations accepted. Standard models dispatch within 7–15 days; spare parts ship within 48 hours via air freight worldwide.
4B3.9-G1 50HZ/1500rpm
| Genset | ADE48 |
| Voltage | 230V/400V |
| Engine | TD226B-3D |
| Prime Power/Standby Power | 35KW/38KW |
| Alternator | Leroy somer,Stamford,Marathon |
| Controller | Deepsea |
| Circuit Breaker | ABB/SCHNEIDER |
| Type | Open/Silent |
| Fuel Tank | Base Tank,External Daily Fuel Tank |
| Optional supporting products | Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Day Tank |
Powered by DCEC Engine
Generator model | Engine model | Prime power | Standby power | Size (mm) | |||
| KW | KVA | KW | KVA | open type | silent type | ||
| AC28 | 4B3.9-G1 | 20 | 25 | 22 | 28 | 1608×730×1184 | 2250×1000×1470 |
| AC28 | 4B3.9-G2 | 20 | 25 | 22 | 28 | 1608×730×1184 | 2250×1000×1470 |
| AC41 | 4BT3.9-G1 | 30 | 38 | 33 | 41 | 1670×730×1232 | 2250×1000×1650 |
| AC41 | 4BT3.9-G2 | 30 | 38 | 33 | 41 | 1670×730×1232 | 2250×1000×1650 |
| AC55 | 4BTA3.9-G2 | 40 | 50 | 44 | 55 | 1670×730×1310 | 2250×1000×1650 |
| AC63 | 4BTA3.9-G2 | 45 | 57 | 50 | 63 | 1705×730×1310 | 2250×1000×1650 |
| AC69 | 4BTA3.9-G2 | 50 | 63 | 55 | 69 | 1852×730×1310 | 2500×1000×1650 |
Powered by UK brand Engine
| Generator Model | Engine Model | Prime power | Standby power | Size (mm) | |||
| KW | KVA | KW | KVA | Open Type | Silent Type | ||
| AP10 | 403D-11 | 7 | 9 | 8 | 10 | 1280×500×860 | 2480×900×1260 |
| AP14 | 403D-15 | 10 | 13 | 11 | 14 | 1280×500×950 | 2480×900×1350 |
| AP22 | 404D-22 | 16 | 20 | 18 | 22 | 1420×500×1000 | 2620×900×1400 |
| AP33 | 1103A-33G | 24 | 30 | 26 | 33 | 1520×650×1200 | 2720×1050×1600 |
| AP50 | 1103A-33TG1 | 36 | 45 | 40 | 50 | 1520×650×1200 | 2720×1050×1600 |
| AP66 | 1103A-33TG2 | 48 | 60 | 53 | 66 | 1520×650×1200 | 2720×1050×1600 |
| AP72 | 1104A-44TG1 | 52 | 65 | 57 | 72 | 1800×650×1200 | 3000×1050×1600 |
| AP88 | 1104A-44TG2 | 64 | 80 | 70 | 88 | 1800×650×1200 | 3000×1050×1600 |
