meeting global power standards. Quiet operation and reliable performance make them perfect for backup power. Featuring high-efficiency engines and brushless alternators, they offer low fuel consumption and minimal maintenance. With a monthly output of 60+ units and ample stock, OEM is supported. Over 5,00 units exported to Southeast Asia, Africa, and South America, earning wide trust.
Urban construction budgets pay by the square meter. On tight city plots, basement retrofits, and high-density industrial parks, a generator that takes up less ground while delivering full rated output is worth the spec conversation. This Cummins open type genset — built around proven models including the KTAA19-G6A at 625KVA — is sized and configured specifically for projects where the generator room or laydown area is the first thing sacrificed in the site plan. We have supplied this configuration to urban infrastructure contractors across Southeast Asia and the Gulf — metro construction staging areas, mixed-use development sites, and substation upgrade projects where the incoming power was cut during civil works. Monthly shipments average 500+ units from our Yangzhou plant; the 625KVA rating typically leaves within 10 days of order confirmation. Open frame keeps the footprint to the absolute minimum — no canopy adds length or width. The unit sits on a heavy-duty steel base with forklift pockets, so it relocates between floors or site zones without a crane. ATS for seamless mains-to-generator transfer, parallel sync for multi-unit urban power stations, and compact external day tanks that mount beside the base rather than below it are all available at order stage.
This open type diesel generator set runs a Cummins engine and is built around one practical demand: keeping farms and agricultural operations powered when grid supply is absent or unreliable. It handles irrigation pump loads, grain dryers, cold storage, greenhouse climate systems, and poultry house ventilation — applications where a power cut means direct crop or livestock loss. Units have been shipped to farming regions across East Africa, Southeast Asia, and South America, with repeat orders from distributors serving rural agri-businesses. The open frame design is a deliberate choice for outdoor farm environments. All service points — fuel filter, oil drain, battery, air cleaner — are accessible from ground level without removing any panels. Refueling in the field takes under three minutes. The 8-hour base tank keeps irrigation cycles running without interruption, and an extended day tank option covers longer unattended operation on larger plots. Both 50Hz (380V/400V) and 60Hz (208V/480V) versions are available. Standard units ship from our Yangzhou factory within 7–15 days. ATS automatic transfer switch, trailer mounting for plot-to-plot mobility, and parallel sync for multi-unit farm power stations are all configurable at order stage. CE, ISO9001, and ISO14001 certified. OEM accepted with qualifying quantity.

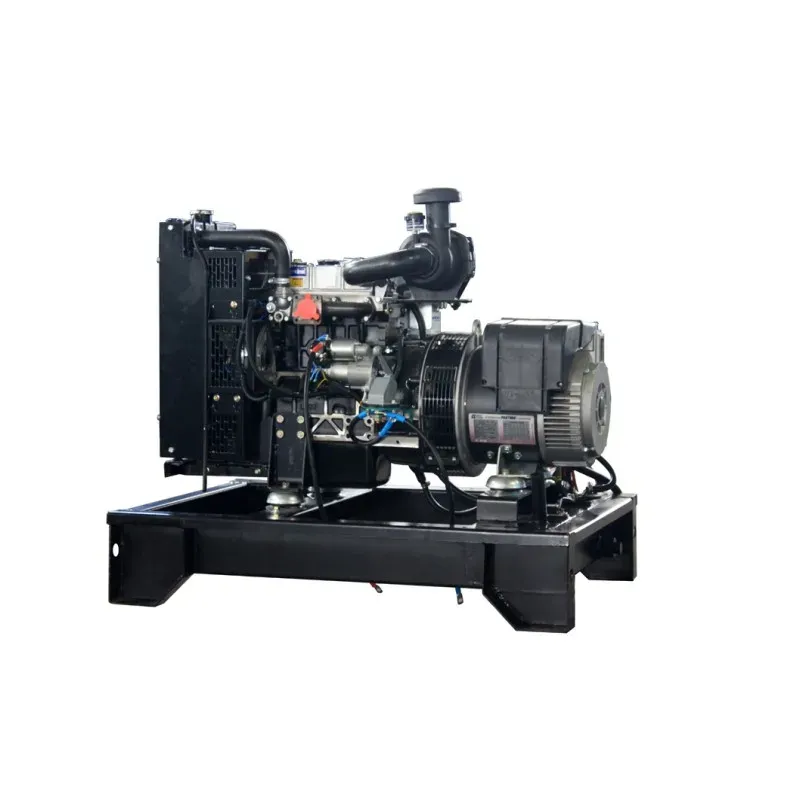

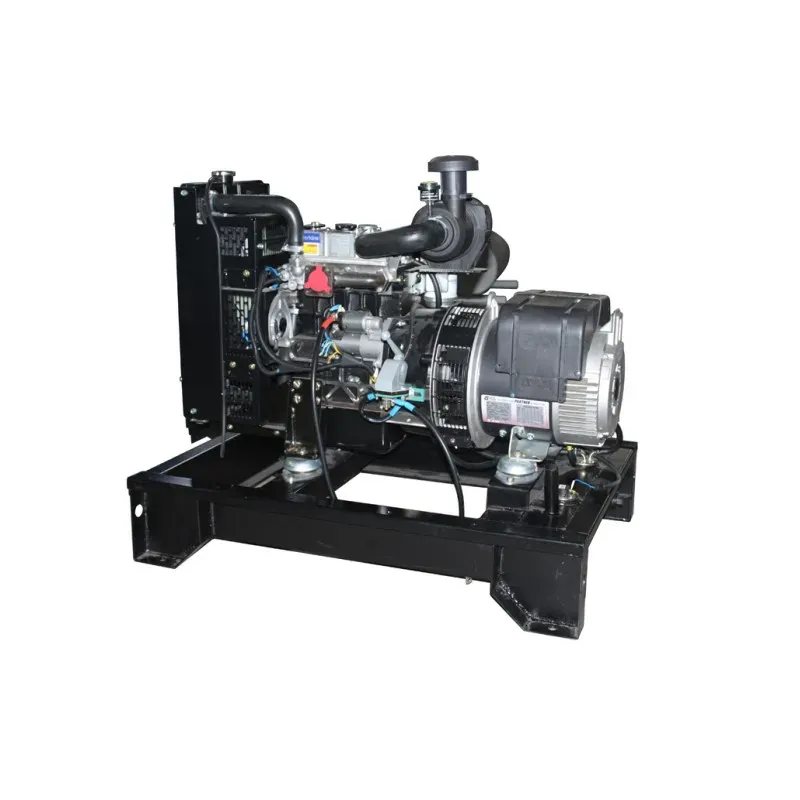

Cummins engine. Open frame. Minimum footprint, full rated output. Built for urban construction sites, basement plant rooms, high-density industrial parks, and retrofit projects where generator space is tight. Typical rating: 625KVA (KTAA19-G6A). Full range: 10KW–2000KW. 50Hz and 60Hz. Ships from Yangzhou within 7–15 days for stocked ratings.
| Feature | What It Means on Site |
|---|---|
| Open frame — no canopy | Removes 300–600mm from overall length compared to a silenced unit at the same KVA. Fits where canopied units cannot. |
| Forklift pockets in base frame | Relocate between site zones, floors, or buildings without crane hire. Standard pocket spacing fits a 3-tonne counterbalance forklift. |
| Side-mount day tank option | Tank mounts alongside rather than below — plant room ceiling height is preserved. Useful in basement generator rooms with structural constraints. |
| High power-to-footprint ratio | 625KVA KTAA19-G6A occupies approximately 3.6m × 1.5m. Equivalent silent unit would require 4.4m × 2.0m minimum. |
| Parallel sync ready | Two or more units can run in parallel to scale output without increasing individual generator footprint. Common for urban power station builds where space prevents a single large unit. |
| Model Reference | SC700GF / SC700GK / SC700GS |
| Output | 625KVA / 500KW (Standby) · 563KVA / 450KW (Prime) |
| Engine | Cummins KTAA19-G6A — 6-cylinder, 19L displacement, turbocharged & aftercooled |
| Cooling | Water cooled with radiator and safety guard |
| Alternator | Stamford — brushless, single bearing, IP23, Class H insulation |
| Frequency | 50Hz / 60Hz |
| Voltage | 380V / 400V / 415V (50Hz) · 480V (60Hz) — other voltages on request |
| Approx. Footprint | 3,600mm × 1,500mm × 2,000mm (L×W×H) |
| Approx. Weight | ~4,800kg |
| Fuel Consumption | ~206 g/kW.h at full load |
| Fuel Tank | 8-hour base tank standard / external side-mount day tank optional |
| Controller | Deep Sea Electronics / SmartGen — auto-start, fault shutdown, remote monitoring port |
| Circuit Breaker | ABB / Schneider — 3-pole standard, 4-pole optional |
| Options | ATS / Parallel synchronization / Remote monitoring module / Extended day tank / Anti-condensation heater |
Full range covers 10KW–2000KW. Other Cummins models available — contact us with your KVA requirement and site voltage spec.
| Project Type | Why Open Type / Space-Efficient Config | Common Rating |
|---|---|---|
| Urban high-rise construction | Site compound perimeter is fixed; generator must fit residual laydown space | 200–625KVA |
| Basement plant room retrofit | Ceiling height and access ramp width dictate unit dimensions; open type fits where canopied cannot | 250–500KVA |
| High-density industrial park | Generator room allocated during design phase; every m² has a cost; parallel units scale output without larger room | 500–2000KW parallel |
| Urban substation works — mains bypass | Temporary power during switchgear replacement or cable relaying; unit brought in and removed within the project window | 400–1000KVA |
| Land development — early-stage site power | Grid connection delayed 6–18 months after groundbreaking; generator serves entire site until permanent supply commissioned | 200–625KVA |
| Hotel or commercial building — standby | Generator room sized for the original canopied unit; replacement or upgrade needs same or smaller footprint | 150–400KVA |
| Engine | Brand-new Cummins — not remanufactured or refurbished |
| Alternator | Brand-new brushless — single bearing, IP23, Class H insulation |
| Base Frame | Heavy-duty steel channel with forklift pockets and anti-vibration mounts |
| Radiator | With safety guard — remote radiator option for basement installations |
| Silencer | Industrial type with flexible bellow and elbow |
| Battery | Varta sealed maintenance-free with cables |
| Fuel Tank | 8-hour base tank / side-mount external day tank optional |
| Manuals & Tools | Full operation and maintenance manuals for engine, alternator, and control panel |
My plant room has a 2.1m ceiling. Can the 625KVA unit fit?
The standard open type 625KVA stands approximately 2.0m tall. With standard exhaust elbow the stack adds further height — we can supply a low-profile exhaust routing or horizontal exit to keep within your headroom. Send us the room drawings and we will confirm the fit.
Can I run two 625KVA units in parallel instead of one 1250KVA unit?
Yes — parallel sync is available as a factory-fitted option. Two 625KVA units in parallel take up roughly 7.5m × 1.5m against a single 1250KVA which would need approximately 6.5m × 2.5m plus access clearance. In tight rooms the parallel approach often wins on practical layout.
How do I get the unit into a basement with a 2.8m ramp width?
The open type frame width on the 625KVA is 1.5m, so the unit passes a 2.8m ramp with room to spare using a telehandler or forklift. If ramp height is the constraint, we can split the delivery — base frame and genset separately — and assemble on site. This is a common request for retrofit projects.
What is the lead time and how are large units shipped?
625KVA and below: 7–15 days. Above 625KVA: 20–30 days. Units ship by flat-rack or open-top container depending on height. We handle export documentation, packing list, and can coordinate with your freight forwarder on port-of-arrival requirements.
CE — 2006/42/EC Machinery Directive + 2014/30/EU EMC Directive
ISO 9001:2015 — Quality Management System
ISO 14001:2015 — Environmental Management System
ISO 8528 — AC generating set performance standard
